Build a mod interface

Choose native Aether UI or a sandbox app, then add panels, cards, settings, and actions without crossing the authority boundary.

13 minute read

Aether gives a mod two complete UI contracts. Pick one for each panel:

Contract	You author	Aether owns	Use it when
Native view	a compiled, inert tree	components, layout behavior, theme, accessibility	your panel should look and behave like Aether
Sandbox app	a normal HTML/CSS/JS app in an iframe	the frame, title, disclosure, permissions, token stream	the interface needs its own visual identity or imperative rendering

Custom pixels are not a permission. The install review and marketplace disclose that the mod uses a custom interface, but the GM cannot grant half of a panel. Actual powers such as reading documents, rolling dice, or posting cards remain capabilities the GM grants separately.

#Create the package

The default is a native panel:

TerminalShell

aether create mod encounter-clock --title "Encounter Clock"

Ask for a normal sandbox app explicitly:

TerminalShell

aether create mod character-builder --ui app --title "Character Builder"

Both templates use Vite. bun run dev serves a manifest at /mod.json; paste that URL into the world's Mods dialog. Before publishing, run bun run build && bun run preview and install the preview URL. Preview serves dist, which is the artifact that will ship.

#Author syntax: TypeScript first, TSX second

Native UI is a file format, not a component runtime. Plain TypeScript builders are the default because they make that boundary honest: every function runs at build time and the output is JSON. There is no React dependency, hook model, reconciliation, or tenant code imported by the host.

TSX is available as optional build-time syntax through @aether/sdk/native, and it compiles to the same artifact. Use it if nested markup is easier for your team. Do not choose it because you expect React semantics: components cannot keep state or run in a player's browser.

#A native panel

This is a complete panel with composition, local tab state, projected data, and a gesture. The CharacterRow function disappears during the build. The collection receives only documents this reader may see, and member cannot be referenced outside that collection.

src/view.tsTypeScript

import {
  defineNativeView,
  gesture,
  item,
  native,
  query,
} from "@aether/sdk/native";

const member = item("member");

const CharacterRow = () =>
  native.section({
    title: member.text("name"),
    children: [
      native.grid({
        columns: { compact: 1, wide: 2 },
        children: [
          native.metric({
            label: "Armour class",
            value: member.number("system.ac"),
            shape: "shield",
          }),
          native.button({
            label: "Roll initiative",
            action: gesture.roll("1d20"),
          }),
        ],
      }),
    ],
  });

export const partyView = defineNativeView({
  surface: "panel",
  root: native.tabs({
    stateKey: "encounter-clock.tab",
    defaultTab: "party",
    children: [
      native.tab({
        id: "party",
        label: "Party",
        children: [
          native.collection({
            source: query.documents({ type: "srd.character", limit: 12 }),
            item: "member",
            empty: native.text({ children: "No visible characters." }),
            children: [CharacterRow()],
          }),
        ],
      }),
      native.tab({
        id: "notes",
        label: "Notes",
        children: [native.text({ children: "Encounter notes go here." })],
      }),
    ],
  }),
});

#The same panel in TSX

TSX changes the build-time authoring syntax, not the artifact or runtime. This is the same panel, including its component function, projected collection, host-owned tab state, and authoritative roll gesture:

src/view.tsxTSX

/** @jsxImportSource @aether/sdk/native */
import {
  Button,
  Collection,
  Grid,
  Metric,
  Section,
  Tab,
  Tabs,
  Text,
  defineNativeView,
  gesture,
  item,
  query,
} from "@aether/sdk/native";

const member = item("member");

function CharacterRow() {
  return (
    <Section title={member.text("name")}>
      <Grid columns={{ compact: 1, wide: 2 }}>
        <Metric
          label="Armour class"
          value={member.number("system.ac")}
          shape="shield"
        />
        <Button label="Roll initiative" action={gesture.roll("1d20")} />
      </Grid>
    </Section>
  );
}

export const partyView = defineNativeView({
  surface: "panel",
  root: (
    <Tabs stateKey="encounter-clock.tab" defaultTab="party">
      <Tab id="party" label="Party">
        <Collection
          source={query.documents({ type: "srd.character", limit: 12 })}
          item="member"
          empty={<Text>No visible characters.</Text>}
        >
          <CharacterRow />
        </Collection>
      </Tab>
      <Tab id="notes" label="Notes">
        <Text>Encounter notes go here.</Text>
      </Tab>
    </Tabs>
  ),
});

The @jsxImportSource comment selects Aether's tiny build-time JSX transform. It does not import React. CharacterRow() runs while the mod builds, and JSON.stringify(partyView) contains only the validated native-view format.

Register the compiled artifact in the manifest. Native views do not request a styling capability. The semantic action gives the host a safe place to reopen the panel; it does not choose an exact menu position.

src/manifest.tsTypeScript

import { manifestSchema } from "@aether/sdk";
import { partyView } from "./view";

export default manifestSchema.parse({
  id: "encounter-clock",
  kind: "mod",
  title: "Encounter Clock",
  version: "0.1.0",
  minSdkVersion: "0.1.0",
  contributes: [
    {
      kind: "panel",
      id: "encounter-clock.party",
      title: "Party",
      render: { kind: "native", view: partyView },
      defaultLocation: "right",
      singleton: true,
    },
    {
      kind: "action",
      id: "encounter-clock.open",
      anchor: "view.actions",
      label: "Open Encounter Clock",
      icon: "Clock",
      gesture: {
        kind: "openPanel",
        panelId: "encounter-clock.party",
      },
    },
  ],
});

The same panel may dock, float, or pop out. Aether owns all three frames. Your tree is only the panel body, so it cannot cover the tab, close control, mod identity, or another panel.

#A manual tour for a sandbox app

Declare package tours in your manifest. In version 1, users start them manually from Help → Tutorials. Tours cannot start automatically, target Aether-owned UI, reference panels from another package, or control their priority.

Each step needs localized text, a panel from your package, a stable anchor ID exposed by that panel, and an outcome that marks the step complete.

If a step waits for an event, use actionHint to tell the user what action will enable Continue.

src/manifest.tsTypeScript

import { manifestSchema } from "@aether/sdk";

export default manifestSchema.parse({
  id: "encounter-clock",
  kind: "mod",
  title: "Encounter Clock",
  version: "0.2.0",
  minSdkVersion: "0.4.0",
  contributes: [
    {
      kind: "panel",
      id: "encounter-clock.party",
      title: "Party",
      render: { kind: "app", entry: "index.html" },
    },
    {
      kind: "tour",
      id: "party-basics",
      revision: 1,
      defaultLocale: "en",
      title: {
        en: "Party basics",
        "pt-BR": "Noções do grupo",
        es: "Conceptos del grupo",
      },
      launch: { kind: "manual" },
      steps: [
        {
          id: "open-roll-options",
          body: {
            en: "Open the roll options for one visible character.",
            "pt-BR": "Abra as opções de rolagem de um personagem visível.",
            es: "Abre las opciones de tirada de un personaje visible.",
          },
          actionHint: {
            en: "Click the roll-options button in Party.",
            "pt-BR": "Clique no botão de opções de rolagem em Grupo.",
            es: "Haz clic en el botón de opciones de tirada en Grupo.",
          },
          anchor: {
            kind: "panel",
            panelId: "encounter-clock.party",
            anchorId: "ability-check",
          },
          placement: "left",
          interaction: "perform",
          missingAnchor: {
            kind: "wait",
            timeoutMs: 3000,
            fallback: "abort",
          },
          completeWhen: {
            kind: "event",
            event: "roll-options.opened",
            match: { anchorId: "ability-check" },
          },
          advance: "automatic",
        },
      ],
    },
  ],
});

Inside the sandbox, register the element for the step's anchor. Aether tracks its position, visibility, scrolling, and removal. Unregister the element when it unmounts.

src/main.tsTypeScript

import { connectToHost } from "@aether/sdk/sandbox";

const aether = await connectToHost();
const button = document.querySelector<HTMLButtonElement>("#ability-check");
const openRollOptions = () =>
  document.querySelector("#roll-options")?.removeAttribute("hidden");

if (button) {
  const unregister = aether.tours.registerAnchor("ability-check", button);
  button.addEventListener("click", () => {
    openRollOptions();
    aether.tours.signal("roll-options.opened", {
      anchorId: "ability-check",
    });
  });
  addEventListener("pagehide", unregister, { once: true });
}

Report the outcome only after the action happens. Aether accepts it only for the active tour and current step, and ignores stale or duplicate signals.

Every tour must include strings for its default locale. Missing translations fall back to that locale. If the target panel is unavailable, Aether uses the fallback declared for that step.

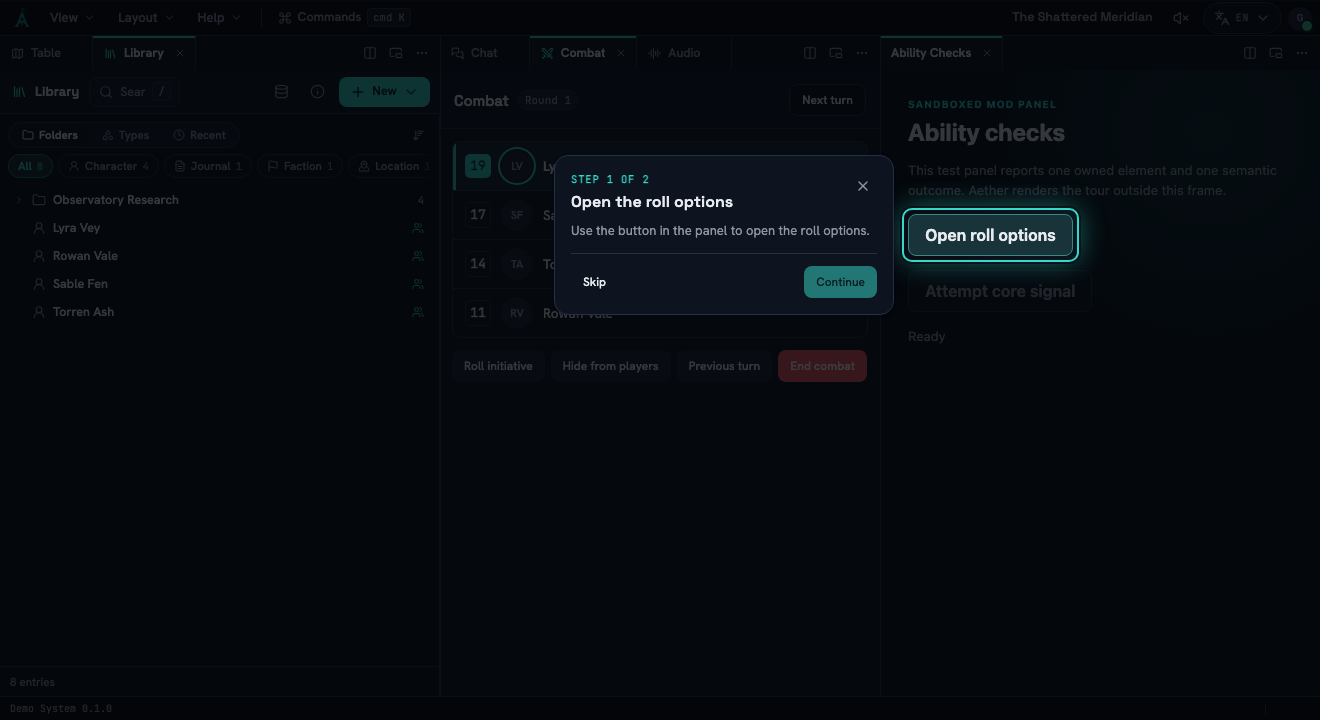

A tour targeting Open roll options in the sandboxed Guided Tour Fixture panel. — FigThe target remains inside the sandbox; Aether renders the spotlight and popover in the host.

#A system sheet

Sheets use the same native vocabulary as panels, with one additional input: the projected document being viewed. Reusing the vocabulary means score blocks, meters, tabs, fields, and collections keep the same behavior everywhere without turning a sheet into a generic stack of inputs.

systems/my-system/src/character-sheet.tsTypeScript

import { defineNativeView, document, expr, native } from "@aether/sdk/native";

const actor = document("actor");
const modifier = (ability: string) =>
  expr.floor(
    expr.divide(
      expr.subtract(actor.number(`system.abilities.${ability}`), 10),
      2,
    ),
  );

export const characterSheet = defineNativeView({
  surface: "sheet",
  root: native.tabs({
    stateKey: "character.tab",
    defaultTab: "actions",
    children: [
      native.tab({
        id: "actions",
        label: "Actions",
        children: [
          native.grid({
            columns: { compact: 2, wide: 6 },
            gap: "control",
            children: ["str", "dex", "con", "int", "wis", "cha"].map(
              (ability) =>
                native.score({
                  key: ability,
                  label: ability.toUpperCase(),
                  value: modifier(ability),
                  detail: actor.number(`system.abilities.${ability}`),
                  format: "signed",
                  editableDetail: {
                    bind: actor.number(`system.abilities.${ability}`),
                    min: 1,
                    max: 30,
                  },
                }),
            ),
          }),
          native.grid({
            columns: { compact: 1, wide: 3 },
            children: [
              native.metric({
                label: "AC",
                value: actor.number("system.ac"),
                shape: "shield",
              }),
              native.meter({
                label: "Hit points",
                value: actor.number("system.hp.value"),
                max: actor.number("system.hp.max"),
                shape: "vital",
                tone: "health",
                editable: true,
              }),
              native.metric({
                label: "Speed",
                value: actor.number("system.speed"),
                suffix: "ft",
              }),
            ],
          }),
        ],
      }),
      native.tab({
        id: "features",
        label: "Features",
        children: [
          native.prose({ content: actor.richText("system.features") }),
        ],
      }),
    ],
  }),
});

systems/my-system/src/index.tsTypeScript

import { defineSystem } from "@aether/sdk";
import { characterSheet } from "./character-sheet";
import { characterSchema } from "./schema";

export default defineSystem({
  manifest: {
    id: "my-system",
    kind: "system",
    title: "My System",
    version: "0.1.0",
    minSdkVersion: "0.1.0",
  },
  setup() {
    return {
      documents: [characterSchema],
      sheets: { "my-system.character": characterSheet },
    };
  },
});

Fields patch through the normal document protocol. The server validates the document schema and the presser's edit authority. A hidden field is absent from a player's projected document, so a reference cannot reveal either its value or the fact that it exists.

#A chat card with authoritative buttons

Chat cards stay a dedicated, bounded format because cards from several mods share one stream. The body supports headings, paragraphs, lists, quotes, links, marks, document references, and inline action references. It does not accept HTML, CSS, arbitrary layout, or executable callbacks.

Declare the capability and the command that reaches your sandbox:

src/manifest.tsTypeScript

export const spellCardContributions = {
  capabilities: ["chat.card", "dice.roll", "documents.read"],
  contributes: [
    {
      kind: "chatCommand",
      name: "/spell",
      args: "<name>",
      description: "Post a spell card.",
      emits: { topic: "spell-cards.command" },
    },
  ],
};

Post inert data from the sandbox app or background entry:

src/main.tsTypeScript

import { connectToHost } from "@aether/sdk/sandbox";

async function main(): Promise<void> {
  const client = await connectToHost();
  client.subscribe("spell-cards.command", (payload) => {
    const name = (payload as { args?: string }).args || "Fire Bolt";
    void client.postCard(
      {
        source: { icon: "Wand" },
        title: name,
        subtitle: "Evocation cantrip",
        rows: [
          { label: "Casting time", value: "1 action" },
          { label: "Range", value: "120 feet" },
        ],
        body: [
          {
            t: "paragraph",
            spans: [
              {
                t: "text",
                text: "Make a ranged spell attack. ",
                marks: ["italic"],
              },
              {
                t: "link",
                href: "https://example.com/rules",
                text: "Read the rule",
              },
            ],
          },
        ],
        actions: [
          {
            id: "attack",
            label: "Attack roll",
            variant: "primary",
            audience: { kind: "anyone" },
            effect: {
              kind: "roll",
              formula: "1d20+5",
              label: `${name} attack`,
            },
          },
          {
            id: "damage",
            label: "Damage",
            audience: { kind: "anyone" },
            effect: { kind: "roll", formula: "1d10", label: `${name} damage` },
          },
        ],
      },
      `cast ${name}`,
    );
  });
}

void main();

The card does not receive a live callback. A press sends the stored action id to the server. The server reloads the stored effect and checks the person who pressed it, including the action's audience and any document ownership. It then rolls or runs automation authoritatively.

#A settings page

Settings are a dedicated host-rendered form, not another free-layout tree. The declaration is the schema the server uses for defaults, ranges, options, scopes, and writes.

src/manifest.tsTypeScript

const settings = {
  kind: "settings",
  id: "spell-cards.preferences",
  title: "Spell Cards",
  groups: [
    {
      id: "rolls",
      title: "Rolls",
      description: "Defaults used by cards you post.",
      fields: [
        {
          key: "attackBonus",
          label: "Attack bonus",
          scope: "user",
          type: "number",
          default: 5,
          min: -20,
          max: 30,
          step: 1,
        },
        {
          key: "showSource",
          label: "Show source links",
          scope: "world",
          type: "boolean",
          default: true,
          help: "Only a GM may change a world-scoped value.",
        },
      ],
    },
  ],
} as const;

The host renders the page under the mod's Settings control. Sandbox code reads only its own namespace; it cannot inspect another mod's values. User settings are private to that user. World settings are projected to members, and only the GM may write them.

src/main.tsTypeScript

const values = await client.settings.all();
const attackBonus = Number(values.attackBonus ?? 5);

// A user-scoped write. null restores the manifest default.
await client.settings.set("attackBonus", attackBonus + 1);

Mods contribute meaning to a semantic anchor. They do not choose exact coordinates, ordering, width, colour, or whether a narrow layout uses a menu instead of a button.

src/manifest.tsTypeScript

const postSpellAction = {
  kind: "action",
  id: "spell-cards.post",
  anchor: "document.actions",
  label: "Post spell to chat",
  icon: "Wand",
  shortcut: "shift S",
  appliesTo: { documentTypes: ["srd.spell"] },
  audience: "anyone",
  gesture: {
    kind: "emit",
    topic: "spell-cards.post-spell",
    payload: {},
  },
} as const;

The host places this in a document header or overflow/context menu as space allows, under From mods. Shortcut collisions are refused centrally. When pressed, the server checks the action is installed, enabled, applicable, visible to this reader, and allowed for this audience. Only then does the sandbox receive the topic with the already-projected target.

The current anchors are document.actions, sheet.actions, library.item.actions, view.actions, and world.actions. New host surfaces add anchors without granting pixel control.

#A fully custom panel

A sandbox panel is a normal web application. Use any framework you can bundle to static files, or none. Aether never imports that bundle into the host process. The iframe has scripts but no shared origin, popups, modal dialogs, forms, or top navigation; steady-state communication uses a private MessagePort transferred during the handshake.

src/manifest.tsTypeScript

const builderPanel = {
  kind: "panel",
  id: "character-builder.app",
  title: "Character Builder",
  render: {
    kind: "app",
    entry: "index.html",
    kitMajor: 1,
    themeMajor: 1,
  },
  defaultLocation: "float",
} as const;

The optional @aether/mod-ui package is framework-neutral custom elements plus CSS. It is bundled from your own origin with your app; it does not import React or @aether/ui. The host streams versioned theme tokens into the document. Token names in one major are additive and keep their meaning, and every token has a fallback so an older host remains readable.

index.htmlHTML

<main class="builder-shell">
  <aether-card>
    <aether-stack>
      <h1>Choose an ancestry</h1>
      <aether-tabs value="human">
        <aether-tab value="human">Human</aether-tab>
        <aether-tab value="elf">Elf</aether-tab>
      </aether-tabs>
      <aether-field label="Character name">
        <input id="name" autocomplete="off" />
      </aether-field>
      <aether-meter label="Steps complete" value="2" max="5"></aether-meter>
      <aether-button id="save" variant="primary">Save character</aether-button>
    </aether-stack>
  </aether-card>
</main>
<script type="module" src="/src/main.ts"></script>

src/main.tsTypeScript

import { installModUi } from "@aether/mod-ui";
import "@aether/mod-ui/theme.css";
import { connectToHost } from "@aether/sdk/sandbox";

installModUi();
async function main(): Promise<void> {
  const client = await connectToHost();
  document.querySelector("#save")?.addEventListener("click", async () => {
    const name = (document.querySelector("#name") as HTMLInputElement).value;

    // Replace this example roll with a capability appropriate to your app.
    try {
      await client.roll("1d20", { source: "character-builder", name });
      await client.toast.show({
        title: "The roll was sent to the table.",
        tone: "success",
      });
    } catch (error) {
      await client.toast.show({
        title: "The roll could not be sent.",
        description: error instanceof Error ? error.message : String(error),
        tone: "error",
      });
    }
  });
}

void main();

Your CSS may style anything inside the panel body, including a canvas or a complete visual system. It may never style Aether's frame, tab, title, menus, chat stream, map, or another mod. The host keeps a visible Custom interface strip around the body and owns loading, failure, and reload states.

#Where state lives

State	Put it here	Example
ephemeral native UI	host state keyed by `stateKey`	selected tab
ephemeral app UI	your app memory or DOM	an open accordion
per-user preference	a `user` setting	compact card descriptions
world preference	a `world` setting	which source book to use
authoritative game state	a document patch or automation action	current hit points
deterministic rules computation	a system automation script	apply damage and conditions

Do not treat iframe storage as game state. A panel may be closed, popped out, reloaded, or mounted in more than one client. Anything the table relies on belongs on the server-authoritative path.

#What is validated, and when

manifestSchema validates the authored contribution at build time.
The client fetches and validates mod.json without running tenant code.
The GM reviews capabilities and the custom-interface disclosure.
The server revalidates installed settings, actions, commands, and every authoritative effect.
Native views query the reader's projected replica; sandbox reads return projected documents.
Renderers stay tolerant of an unknown future node, but acceptance is strict for the format version and profile limits: at most 512 nodes, 16 levels, 256 KiB, and 200 collection rows.

A missing field is not undefined data for a clever expression to probe. Projection removes it before the view or sandbox sees the document. Never encode a secret in presentation conditions, labels, action availability, or collection shape.

Was this page helpful?

#Create the package

#Author syntax: TypeScript first, TSX second

#A native panel

#The same panel in TSX

#A manual tour for a sandbox app

#A system sheet

#A chat card with authoritative buttons

#A settings page

#A menu or header action

#A fully custom panel

#Where state lives

#What is validated, and when
